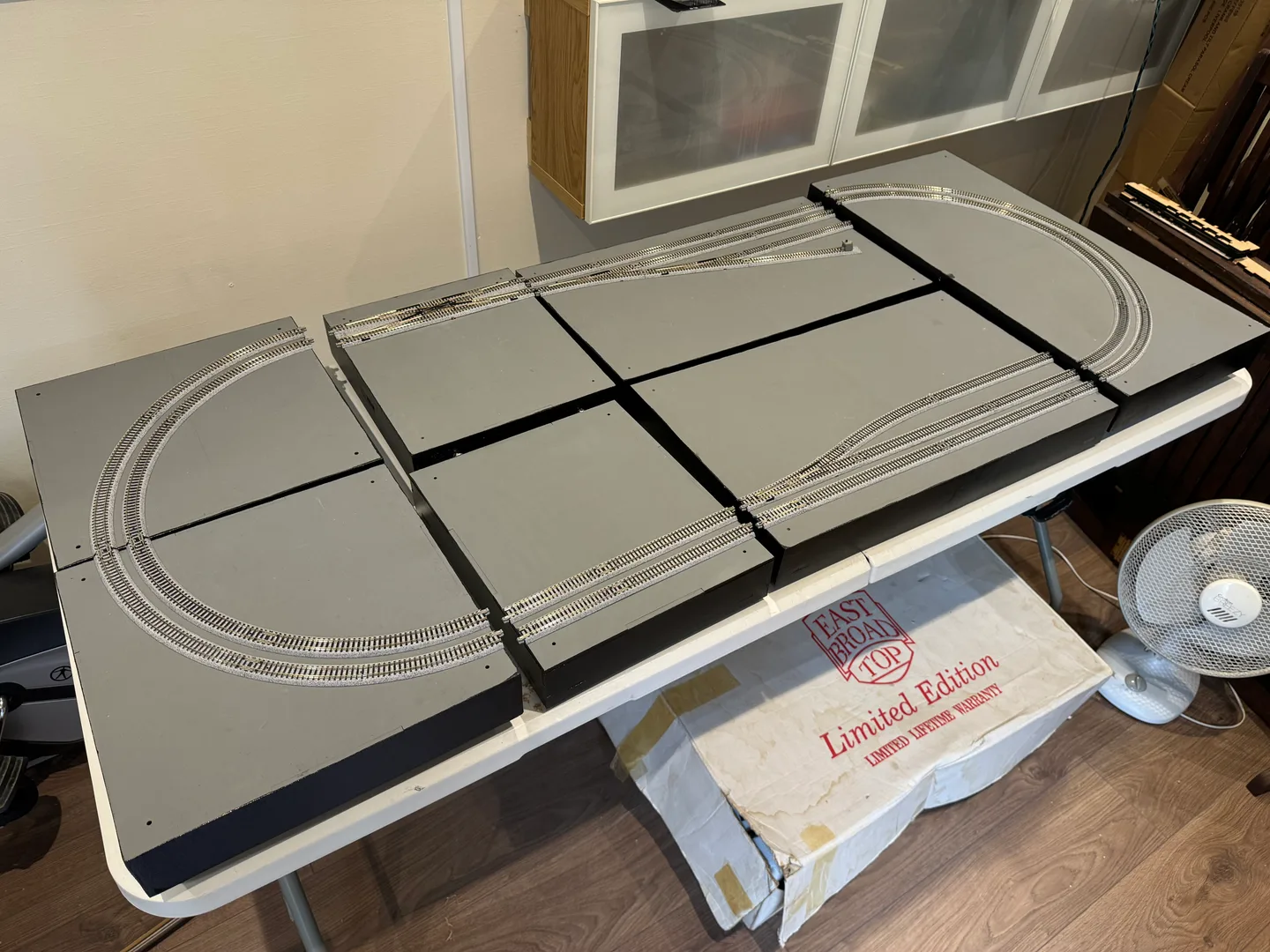

I’m building an N gauge layout that is currently in the early stages of construction. Designed as an exhibition layout, it will feature a series of sections inspired by some of the UK’s most recognisable landscapes and locations, with each set of modules representing its own unique theme. Built to T-Trak standards, the modules can be displayed individually as smaller layouts or connected together to create an ever-expanding larger layout. This flexible approach allows the railway to grow over time while offering a variety of display options. The layout will use Kato Unitrack throughout, in keeping with T-Trak standards, meaning it can also be linked with other compatible modules by other modellers or clubs. The modules themselves are handcrafted by me and will also be available to purchase through my website at https://meddiemakes.co.uk Although the project is still in its early stages, I will be documenting the layout models here on RateMyRailway and on the MeddieMakes website.
T-Trak DCC-EX Power Module Build
Thought I’d share a quick build log of the DCC-EX power module I’ve just started putting together for my T-Trak setup.
First Look

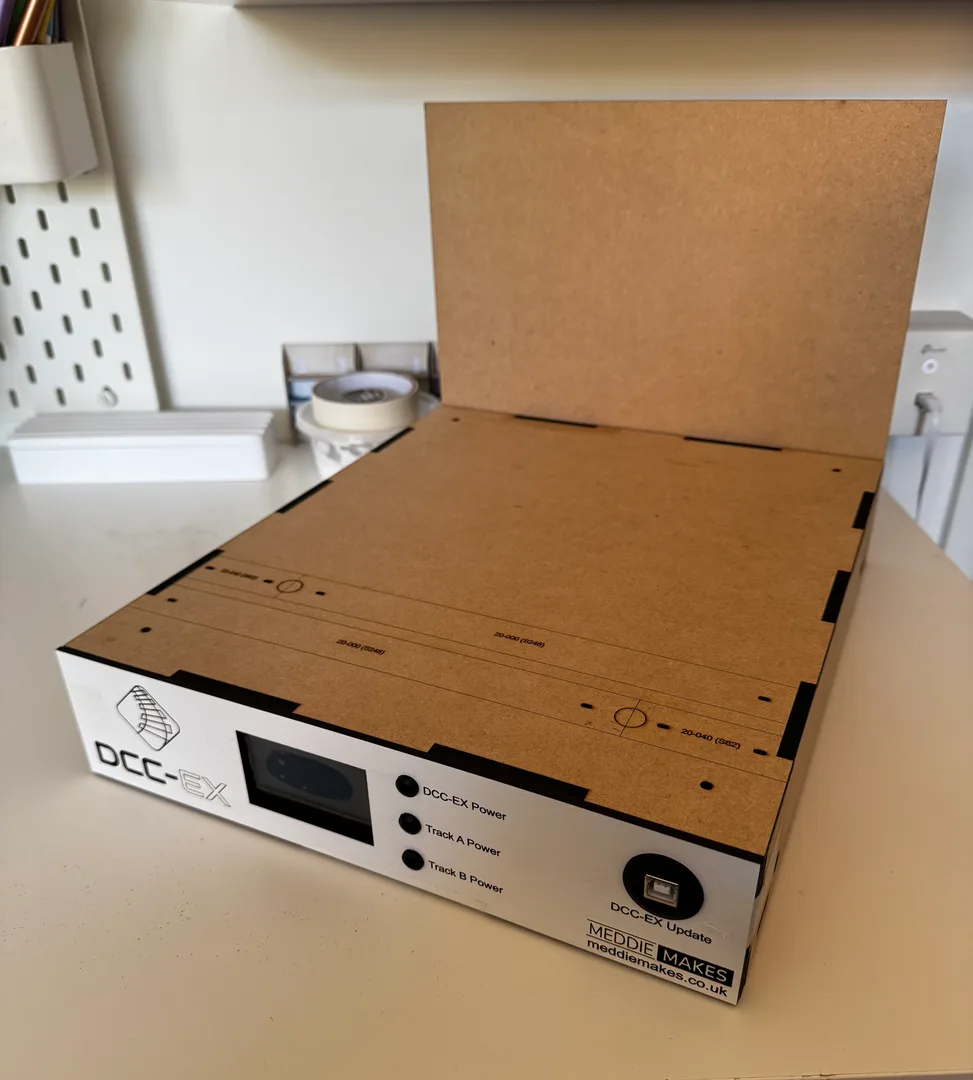

I have designed a power module with a separate white MDF facia panel based on my laser-cut MDF single module. Everything is tab-and-slot, so it’s basically a very satisfying 3D jigsaw. The facia panel is currently temporarily secured with masking tape, as I currently review different methods to secure the facia to the module frame.
Considered using submerged magnets or screws to allow the fascia to be removed for maintenance but this might be overkill as there is plenty of room under the module to access the back of the components. Front panel is already engraved and labelled, giving the facia a great professional look, which is a big win:
Screen cut-out (2.4” LCD Screen)
LEDs for DCC-EX power + Track A/B (Bicolor LED for polarity indicator)
USB port access for updating DCC-EX So no guessing what goes where, which is always appreciated.
Dry Fit
I always like to test-fit before committing to glue, and this went together really nicely. The tolerances are tight but not “force it and regret it” tight.
Here’s where I’m at so far:
Base + sides slotted together cleanly
Front panel lined up perfectly with all cut-outs
Back panel sits upright and gives it a nice solid shape
Layout Planning
Before gluing it up, I’m taking a minute to think about internals:
Where the DCC-EX board will sit
Cable routing for Track A / Track B
Making sure the USB port lines up properly and doesn’t interfere with the adjustable legs
Leaving enough room so wiring doesn’t turn into spaghetti Next Steps Next job will be installing the front panel components:
Wire up the display behind the cut-out
Fit LEDs into their positions
Line up the USB port After that, I’ll glue the enclosure together and start wiring everything up.
Thoughts So Far
I really liked the progress so far. Everything lines up the way I'd hoped, and it already looks like it’s going to be a neat little control unit when finished. Kind of has that “tiny command centre” vibe going on. I’ll update once I’ve got the electronics in and powered up 👍
Edited 30 Apr at 12:46
